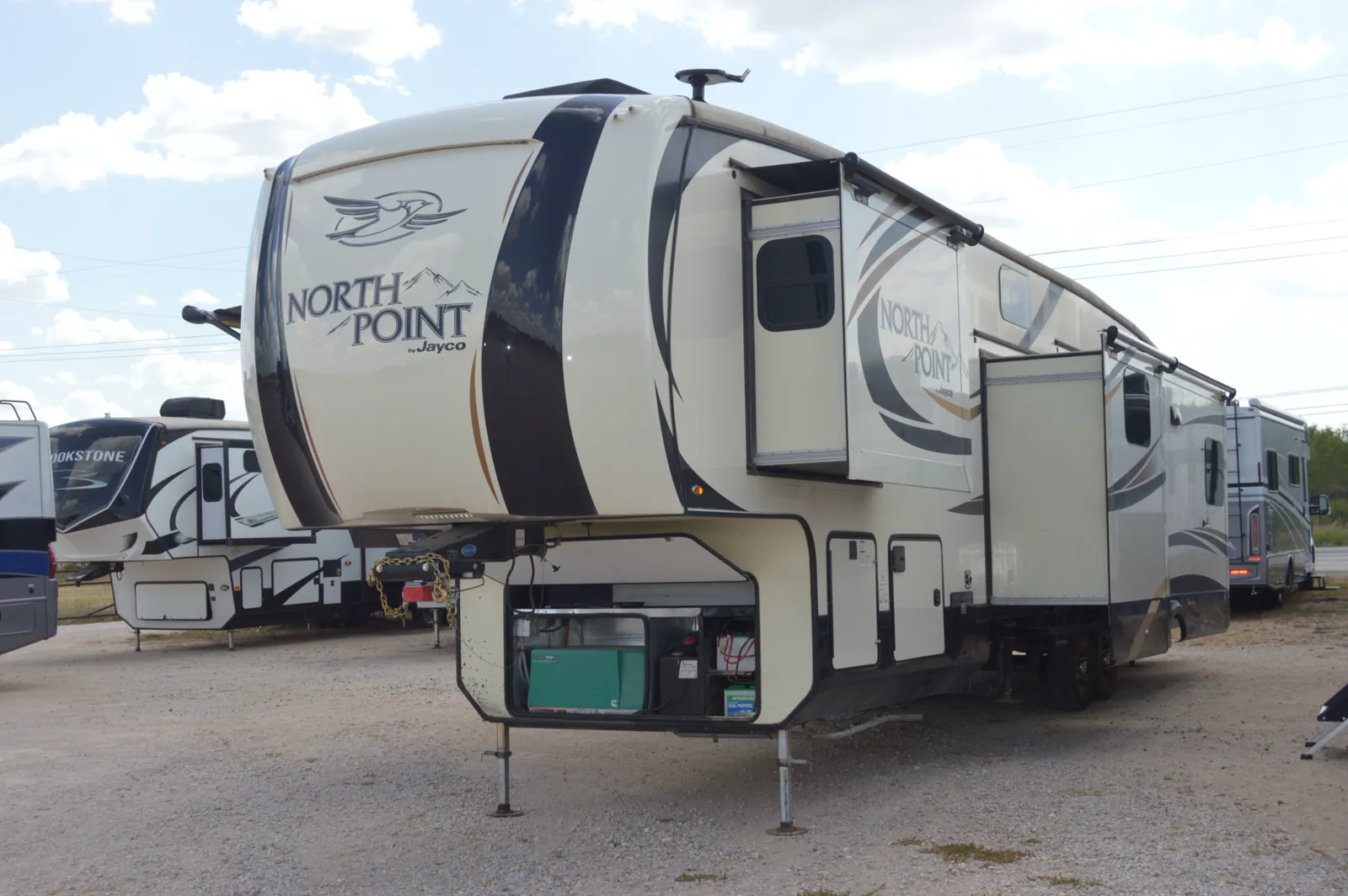

2017 Jayco North Point 377RLBH
$43,900
What truck do I need?
1-ton dually recommended
Start with a properly equipped F-350/F-450 or 3500 dual-rear-wheel truck.
- Maximum loaded RV weight (GVWR)
- 16,500 lb
- 16,500 lb (exact-unit label)
- Tow rating to plan for at full GVWR
- At least 16,500 lb
- Fifth-wheel
Allow for 2,475 lb–4,125 lb of pin / hitch load at full GVWR. Planning estimate only (15–25%), not a measured weight. Add passengers, hitch hardware and truck cargo when checking payload.
Check your exact vehicle before towing
Unloaded reference: 13,305 lb (manufacturer model average). Loaded weight will be higher.
Truck classes are shopping recommendations, not manufacturer minimums or towing approval. Check the exact year, engine, axle ratio, cab, drivetrain and towing package. Loaded truck and trailer weights must stay within towing, payload, GVWR, GCWR, axle, tire and hitch limits. Use scale weights to confirm the combination.
Exact-unit labels take precedence over model references. Never use dry weight alone to choose a tow vehicle.
Manufacturer towing and payload guidanceDescription

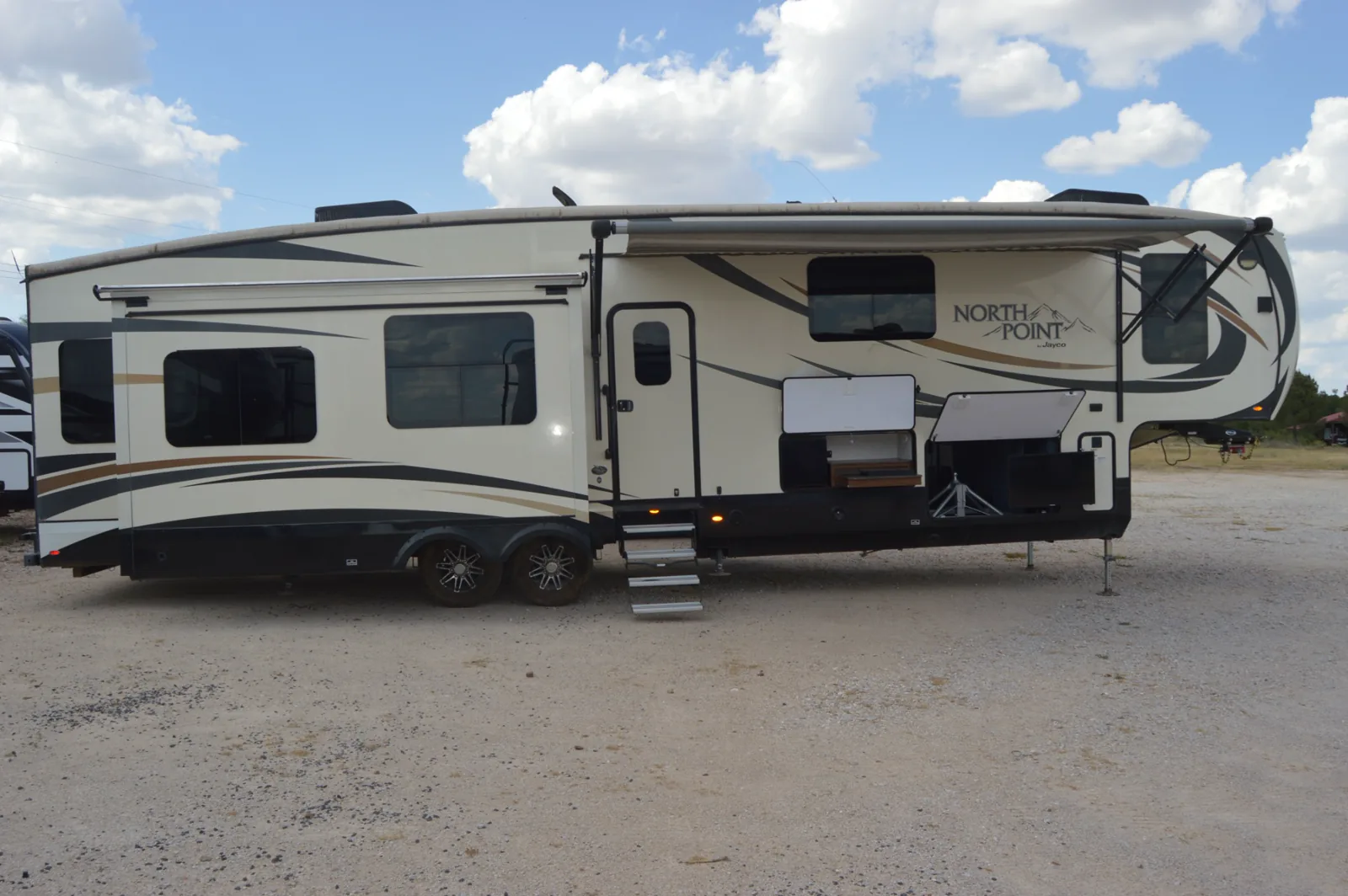

If you need a fifth wheel with enough room for the whole family—but still want a comfortable living room for the adults—this 2017 Jayco North Point 377RLBH is a great setup. The separate mid-bunk can be used for kids, guests or a private office, and the overhead loft adds another sleeping space without taking room away from the main living area. Four slide-outs open up the interior. In back, there is theater seating, a tri-fold sofa, a large television and a fireplace. Across from it, the kitchen island gives you plenty of prep space, along with solid-surface counters, a microwave, range and stainless French-door residential refrigerator. Up front, the private bedroom, full bathroom and generous storage make it comfortable for longer trips. The exact-unit Cummins Onan RV QG 5500 EVAP generator, exterior television, dual awnings, six-point electric auto-leveling and 50-amp service round out a very well-equipped North Point.
Video tour
Highlights
- Rear living room with tri-fold sofa

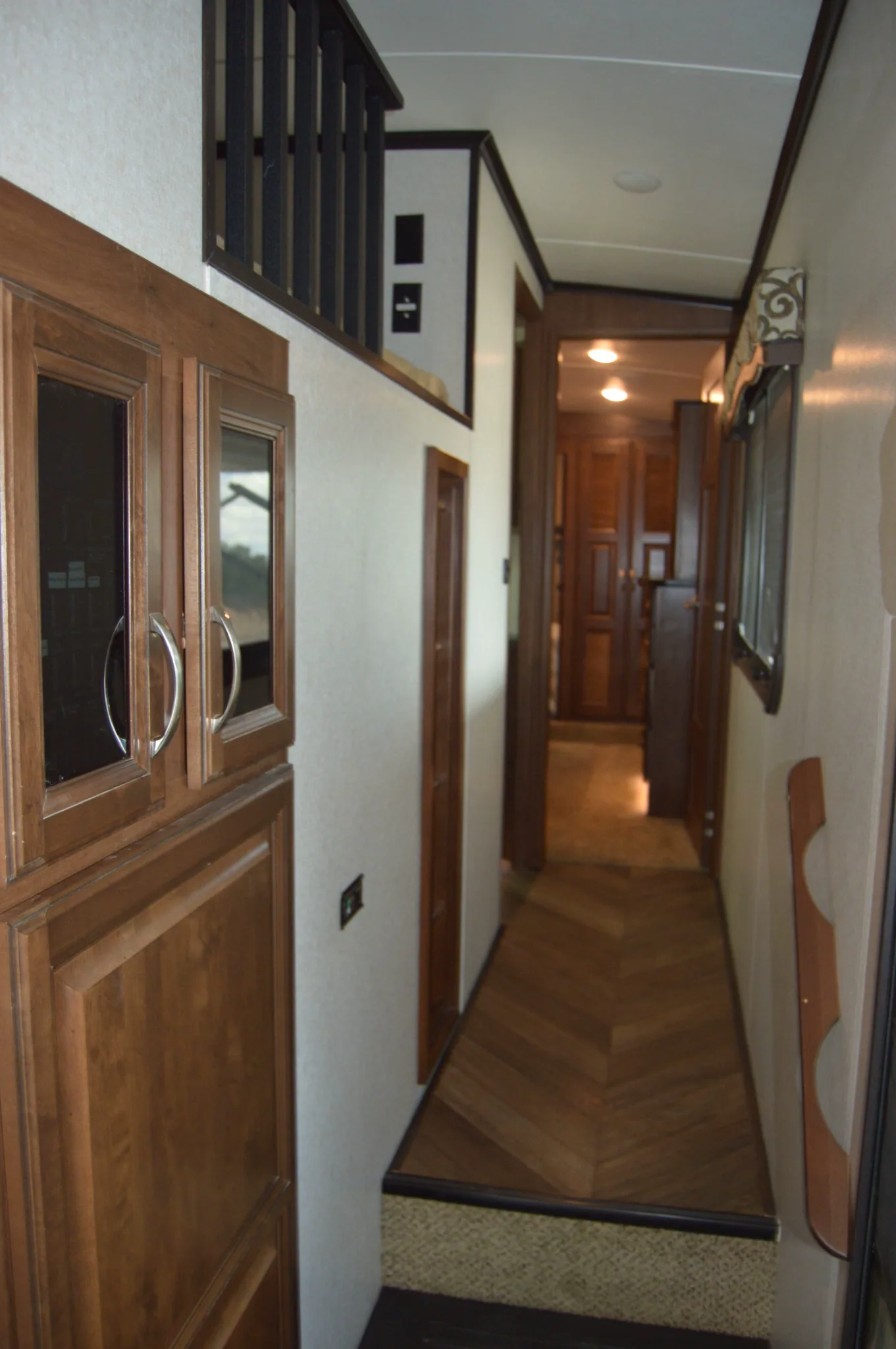

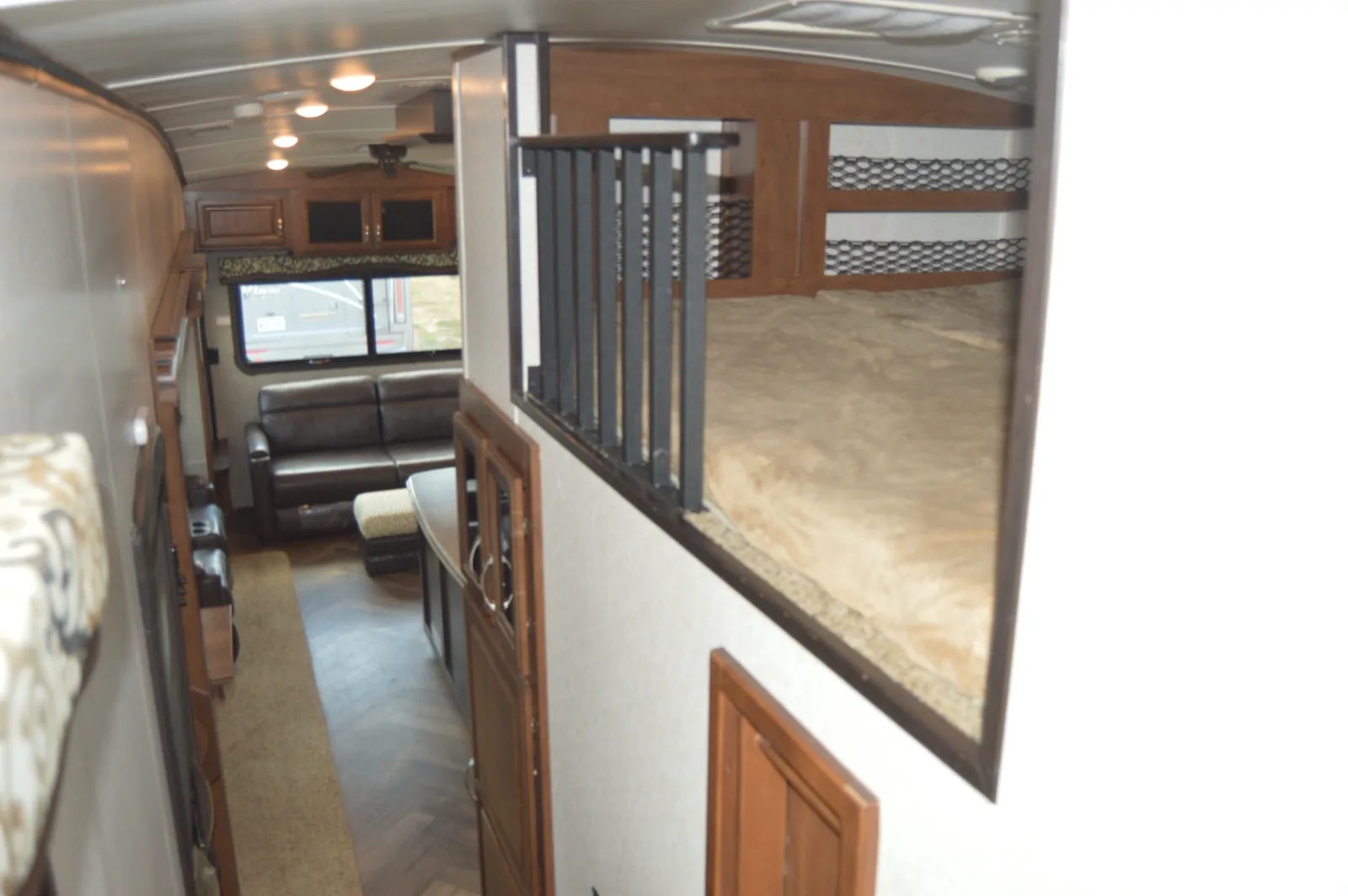

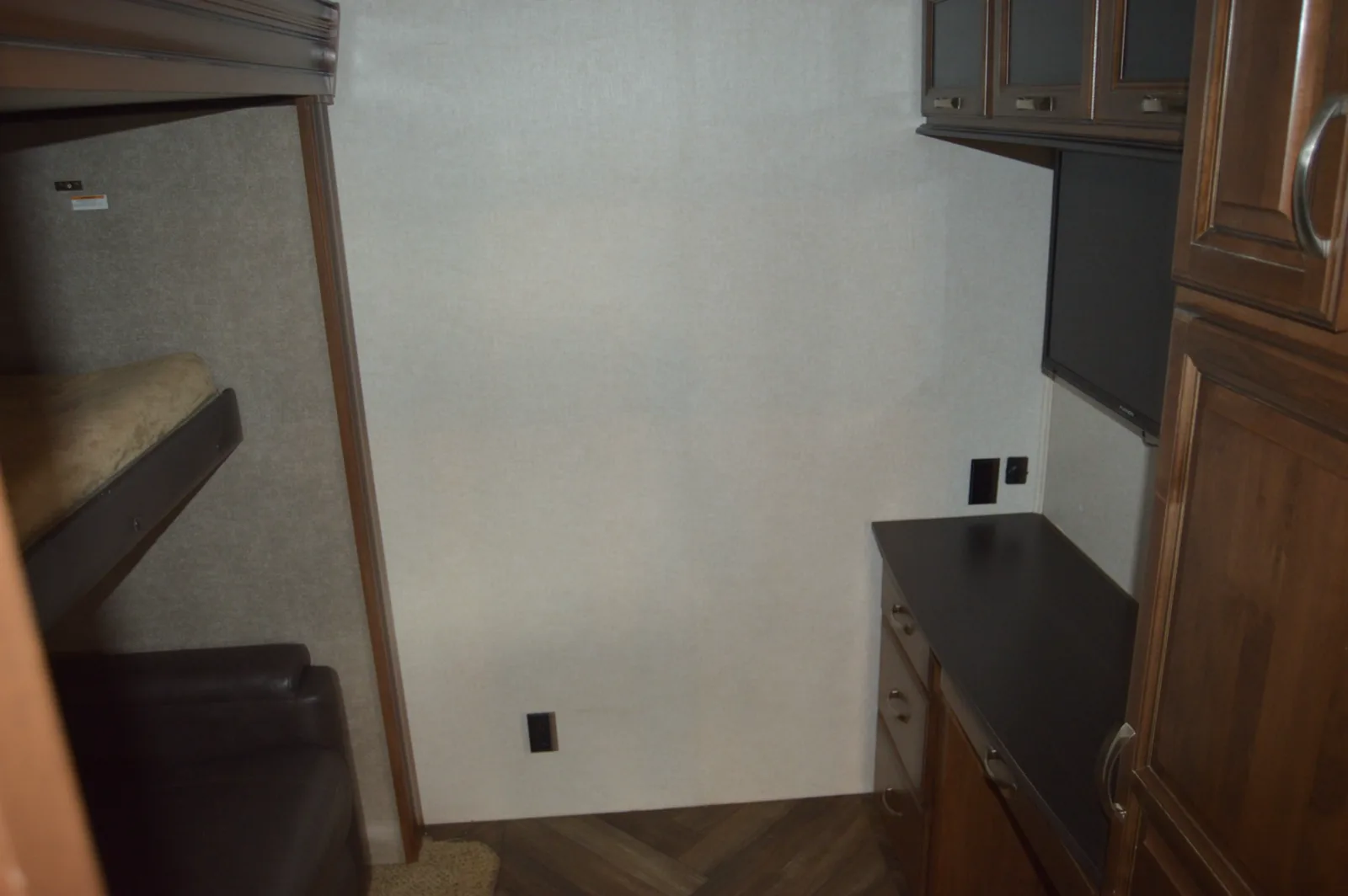

- Separate mid-bunk room and overhead loft

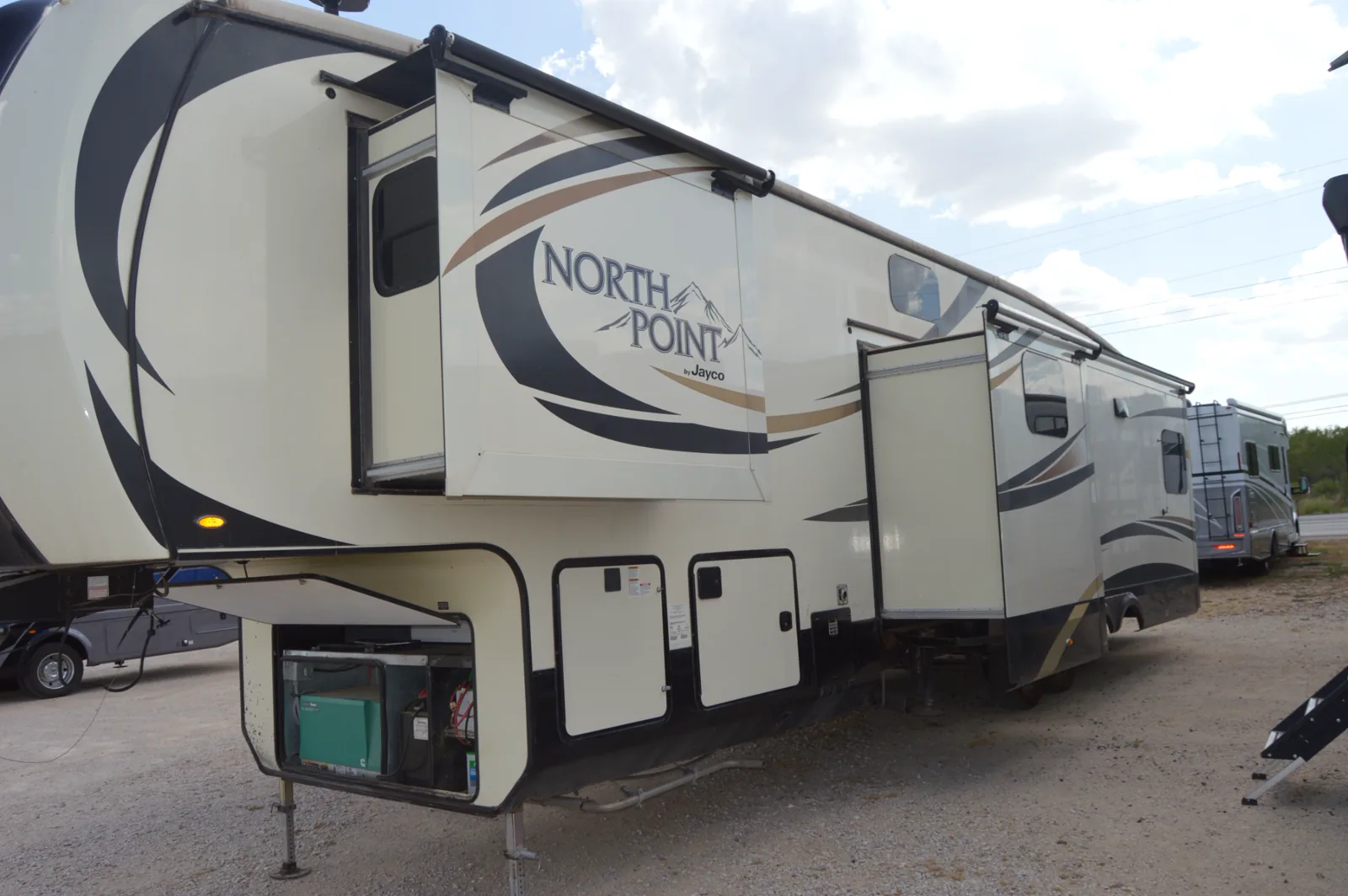

- Four slide rooms
- Sleeps up to nine by manufacturer floorplan rating

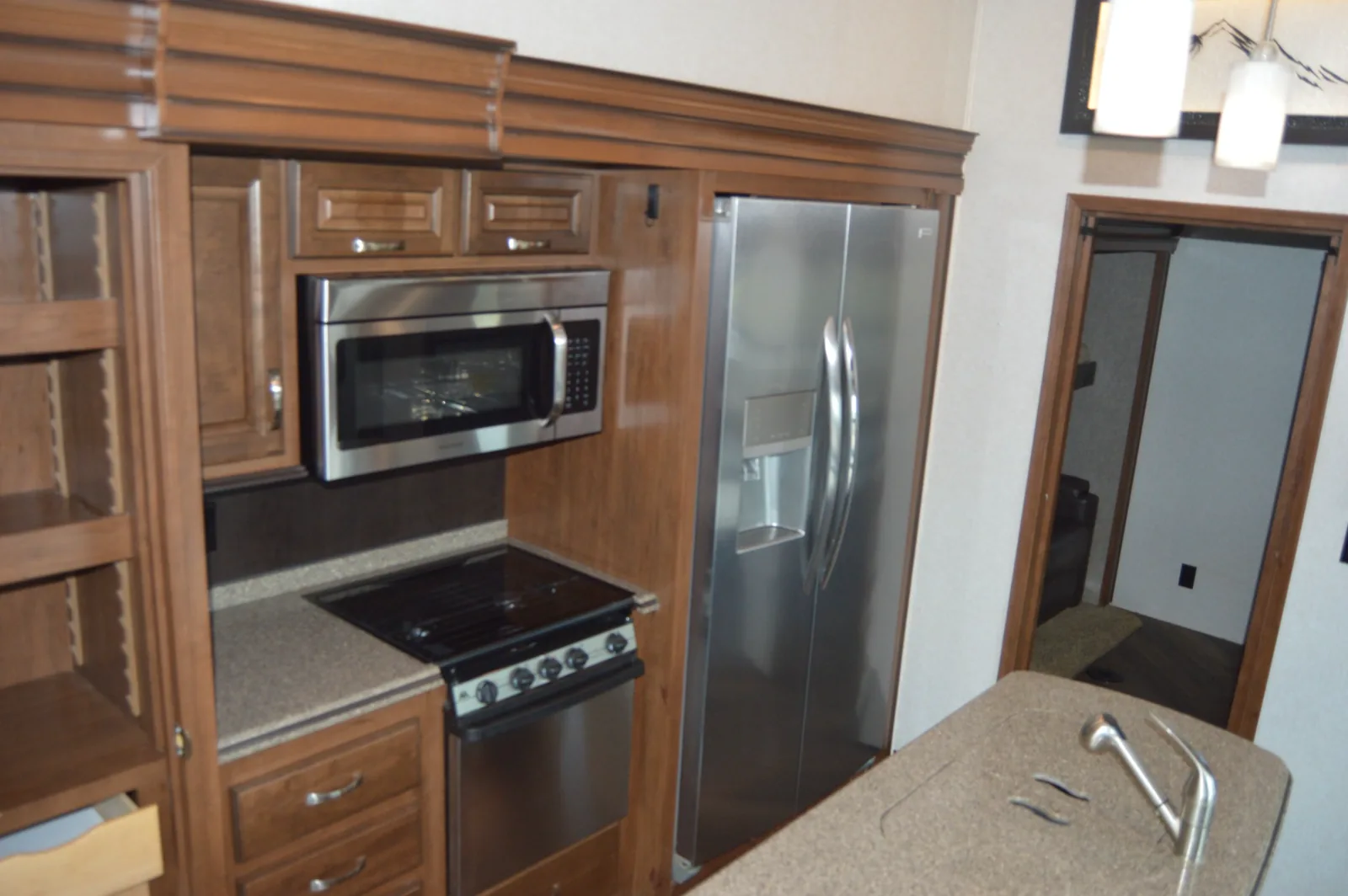

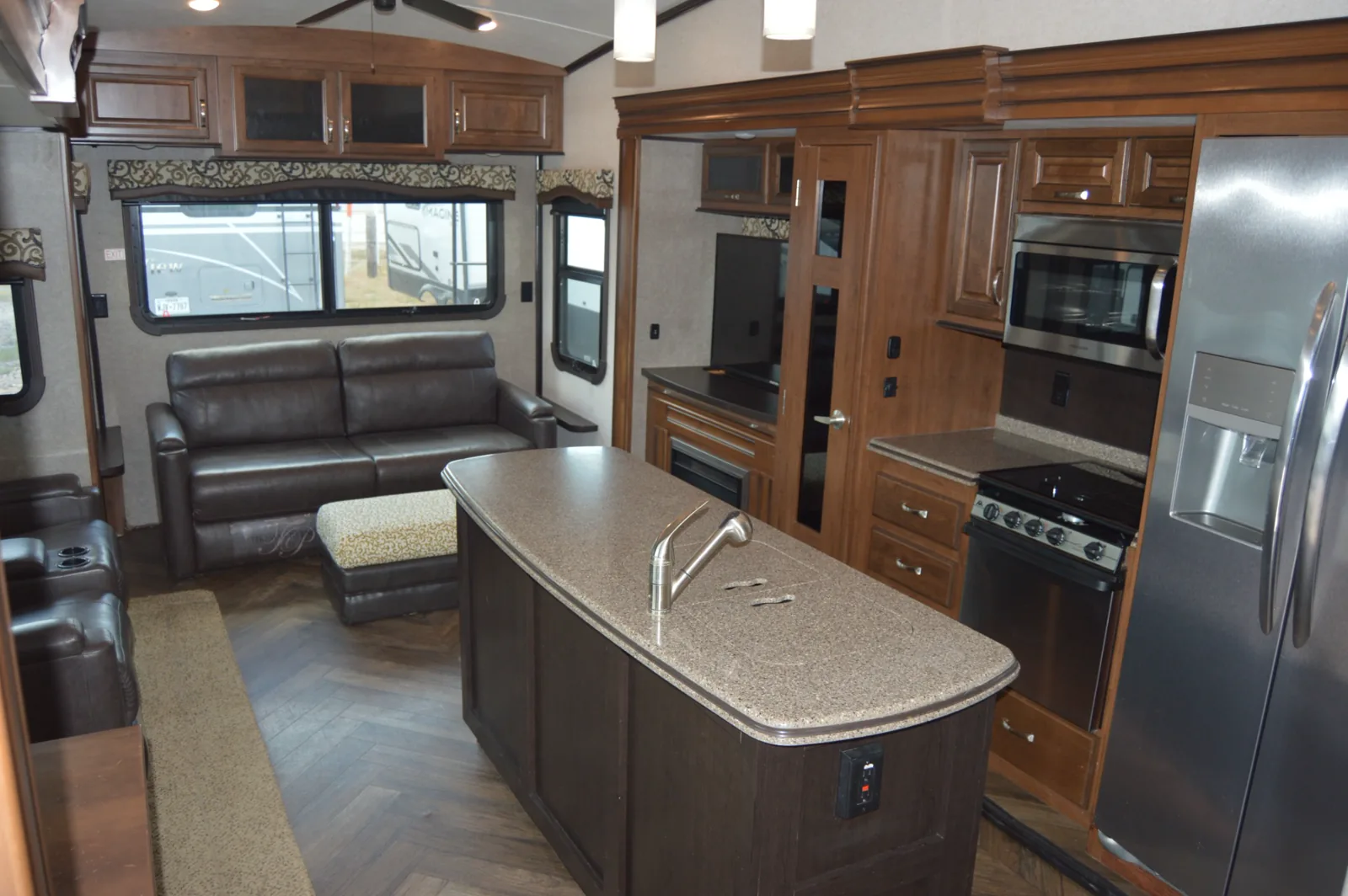

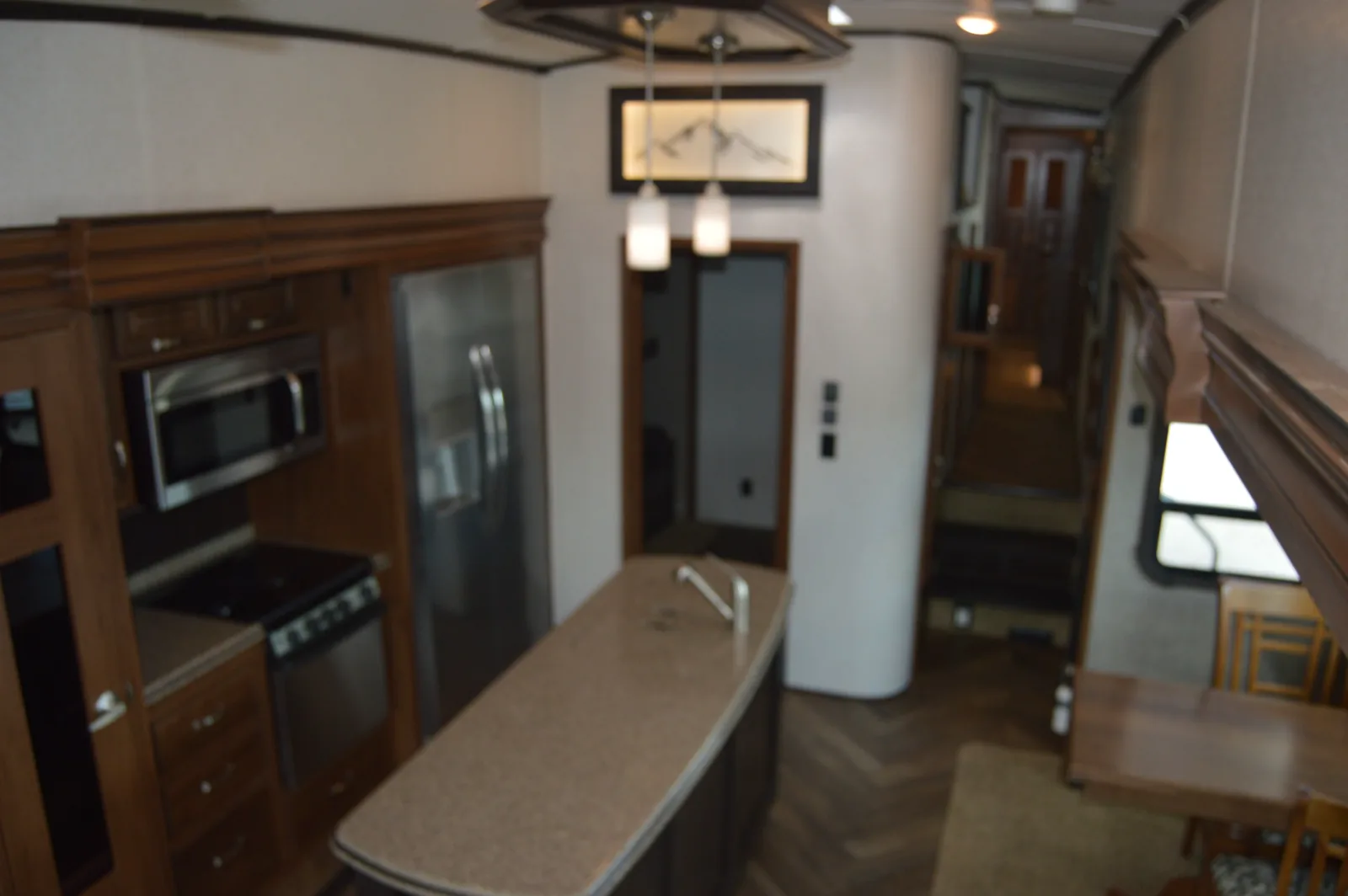

- Kitchen island with solid-surface counters
- Stainless French-door residential refrigerator
- Theater seating and freestanding dining table

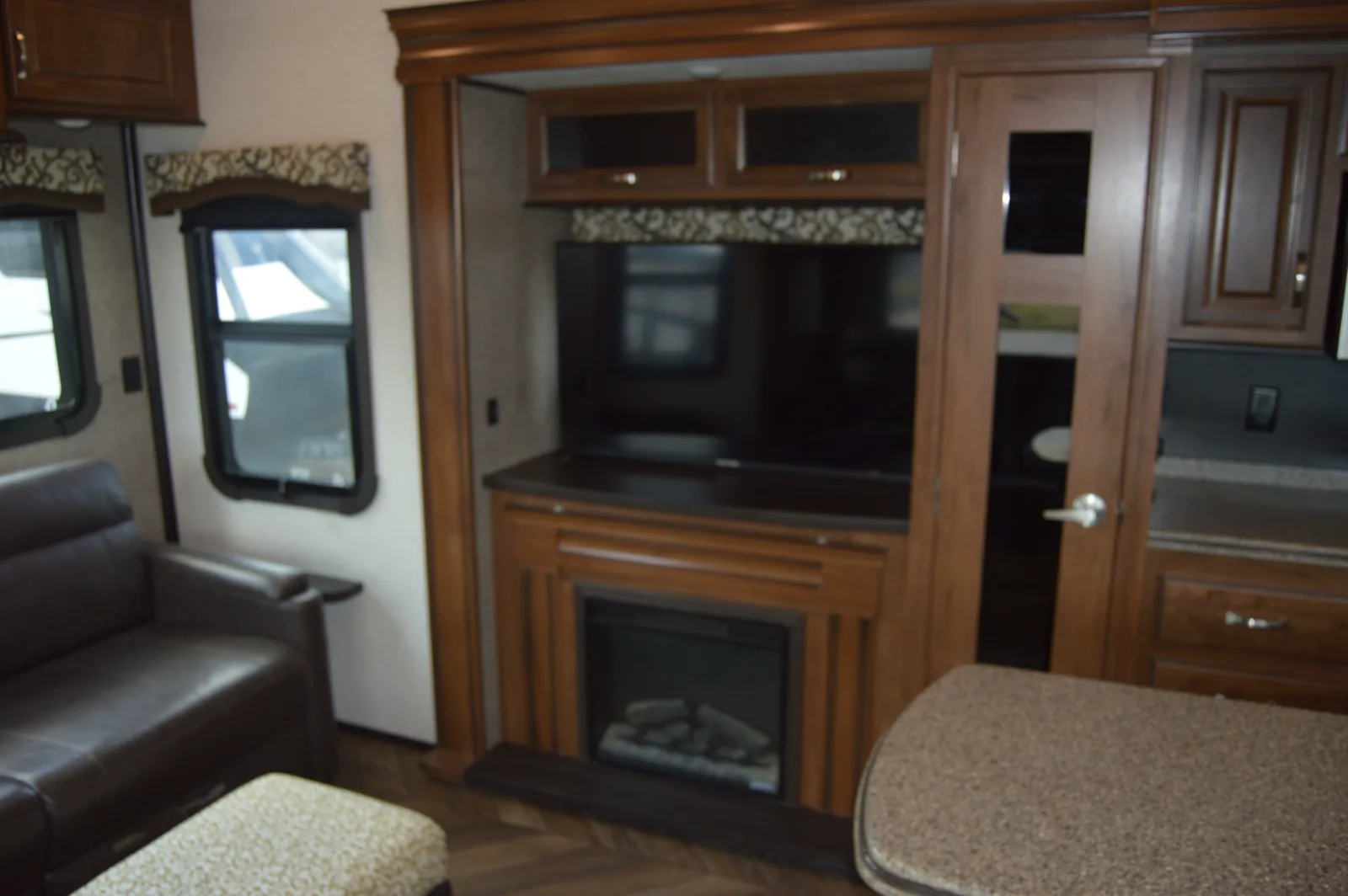

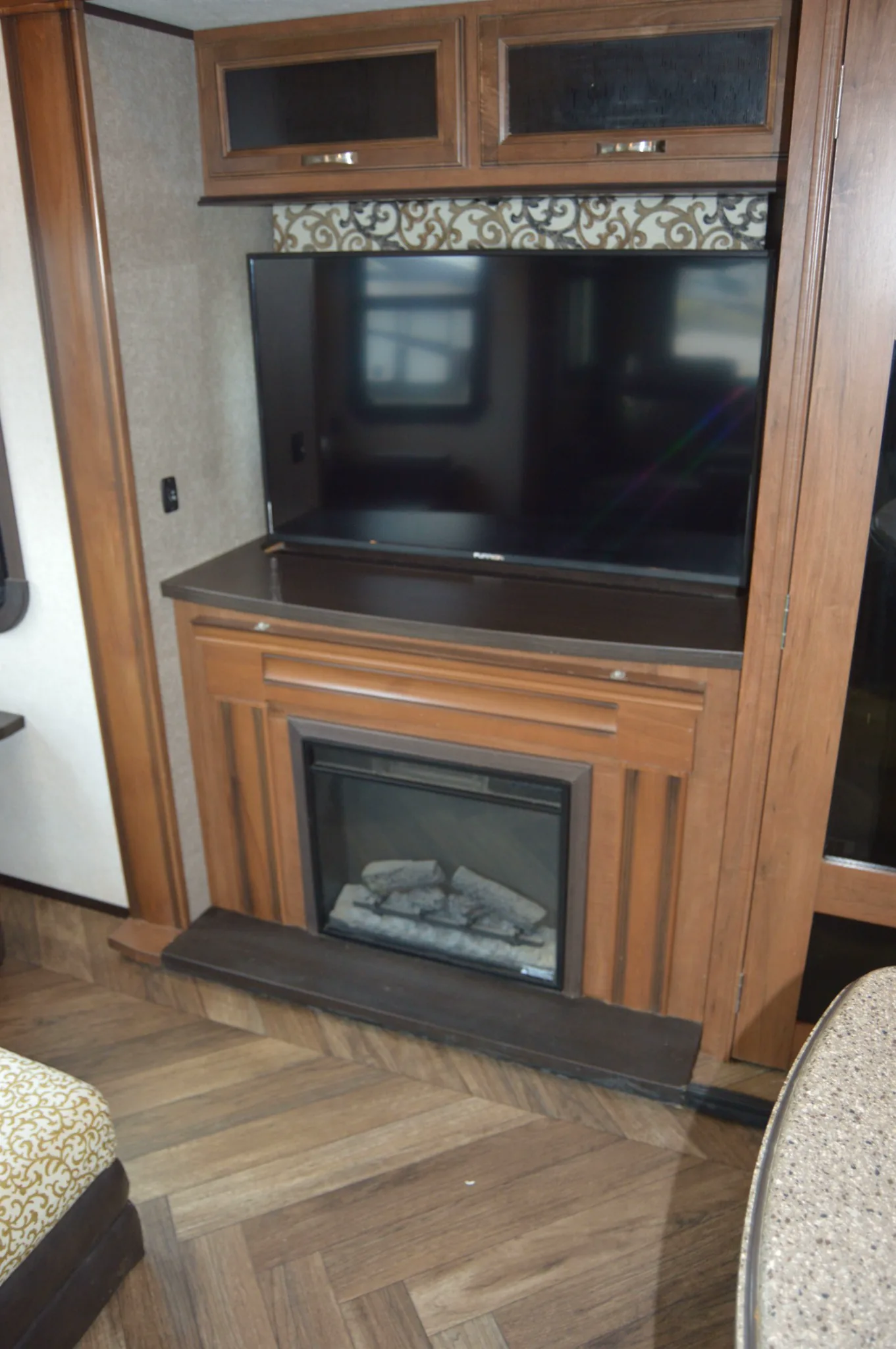

- Living-room television and fireplace

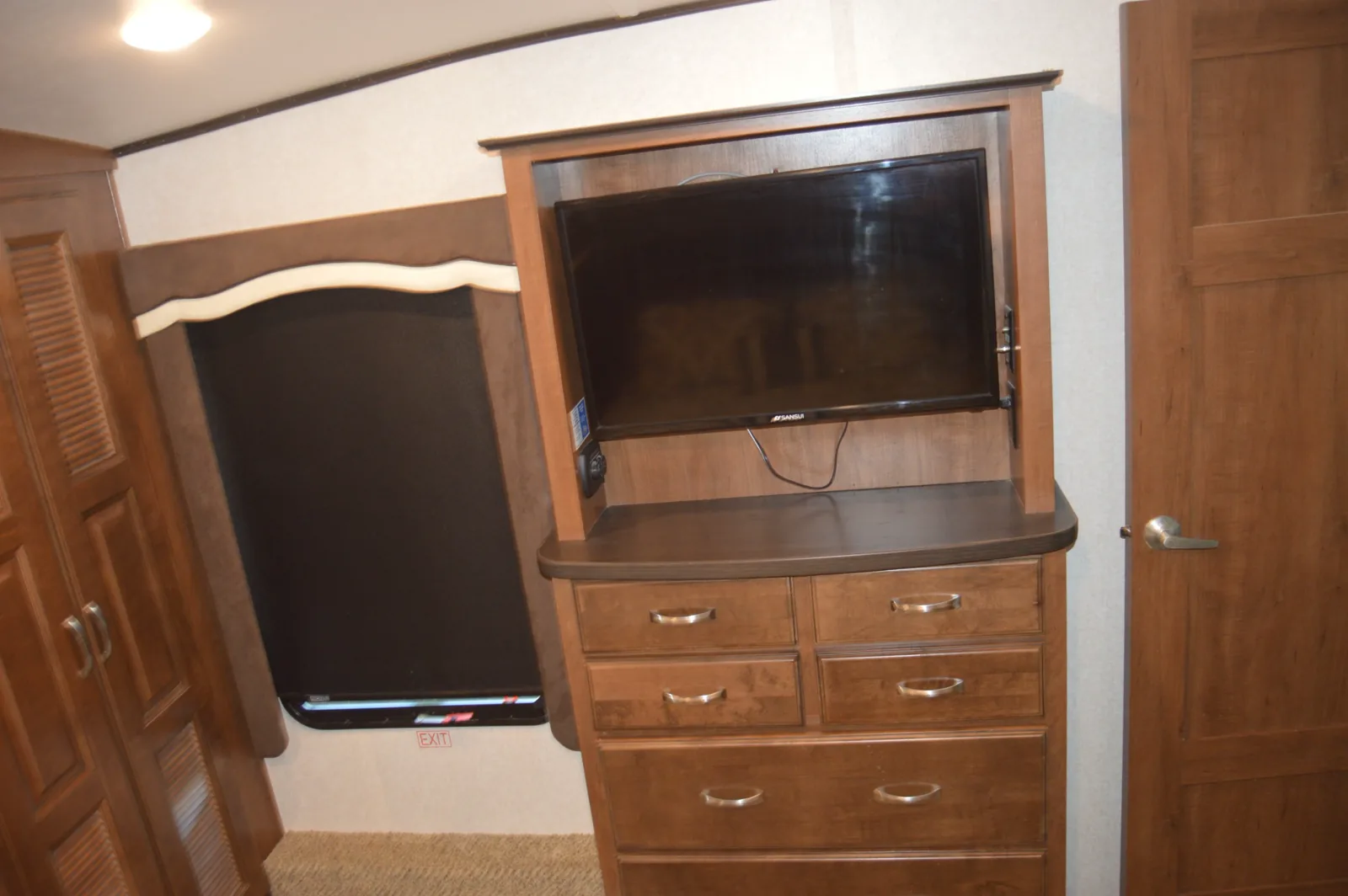

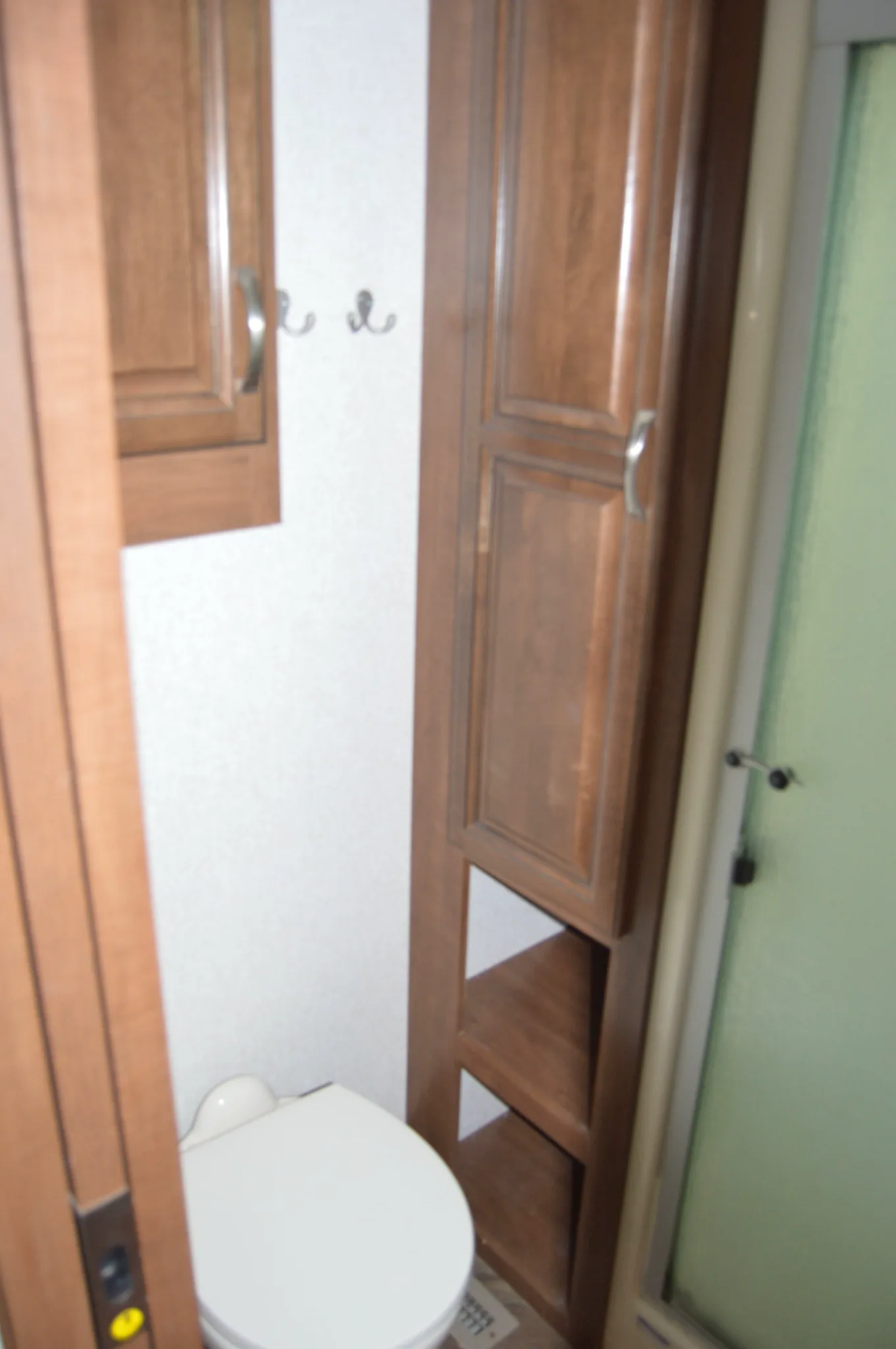

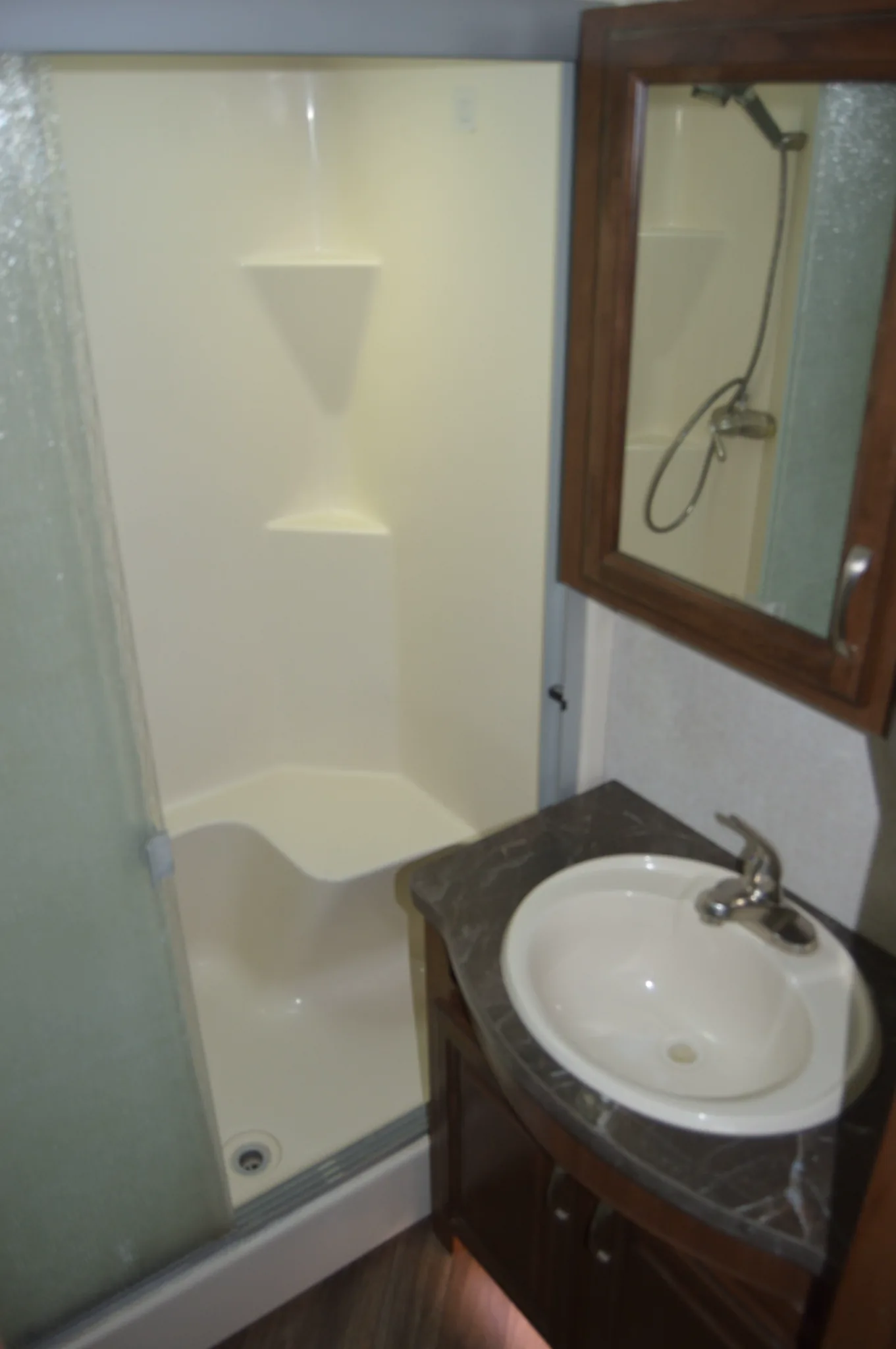

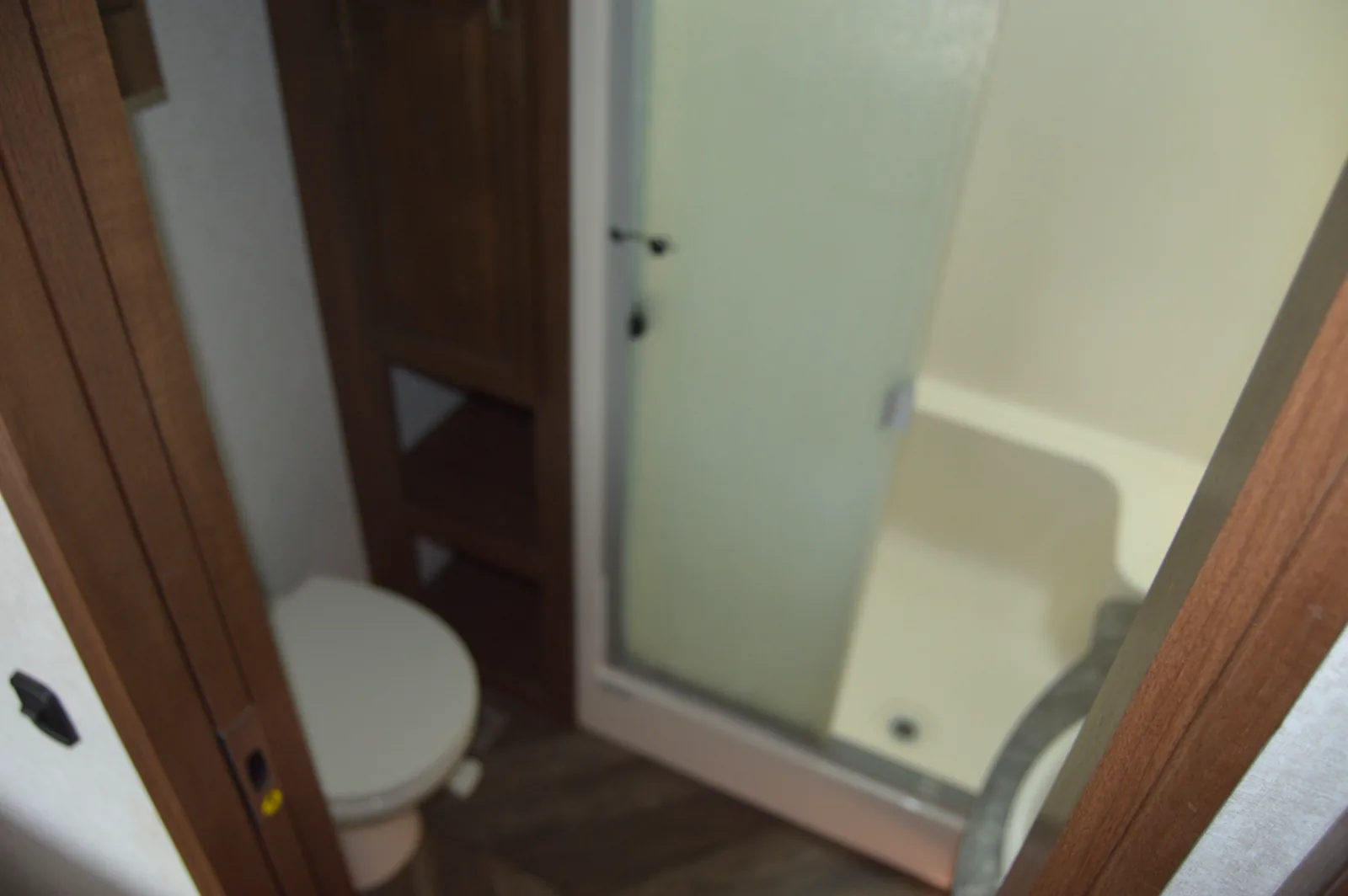

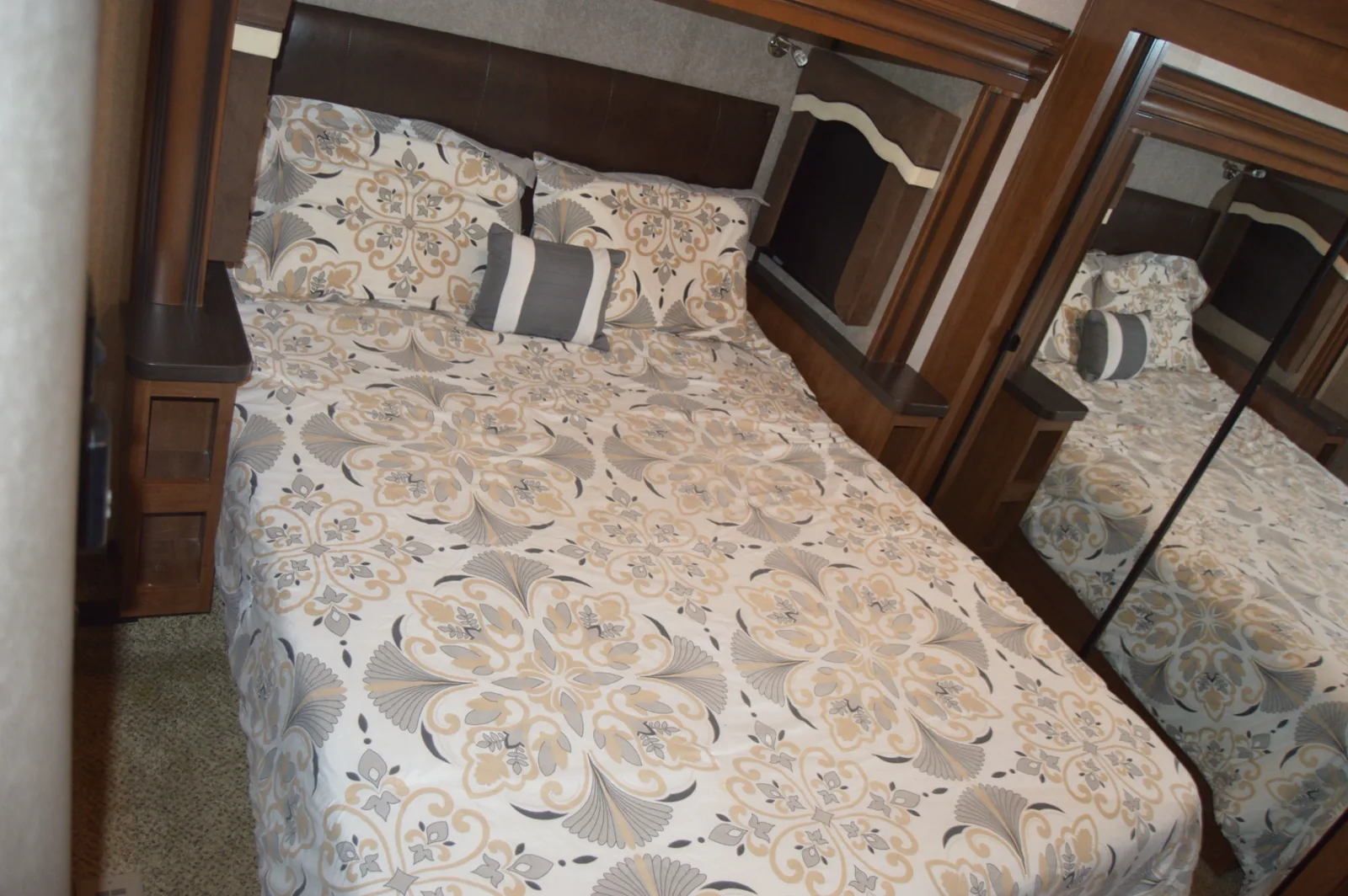

- Private front bedroom and full bathroom

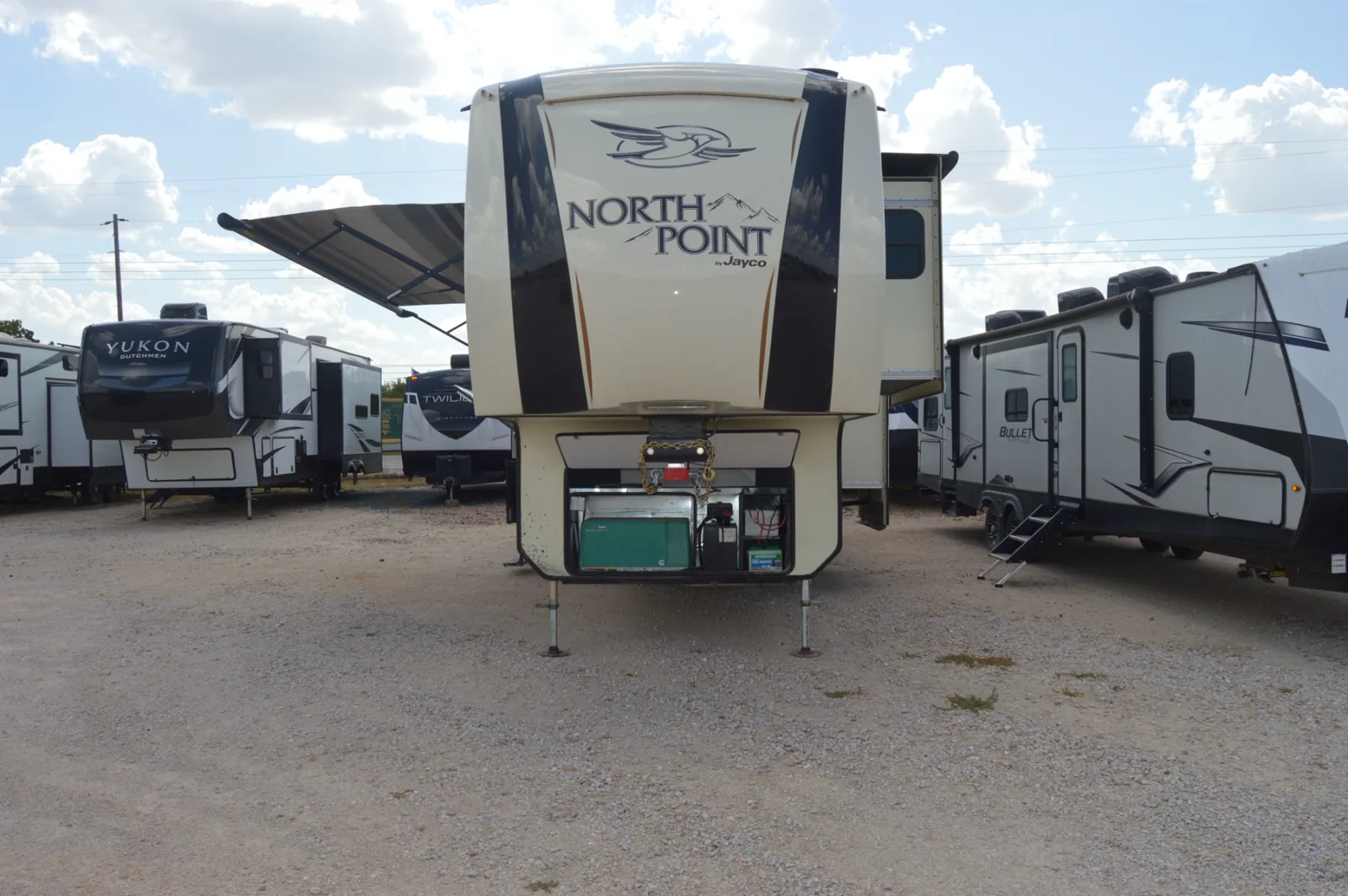

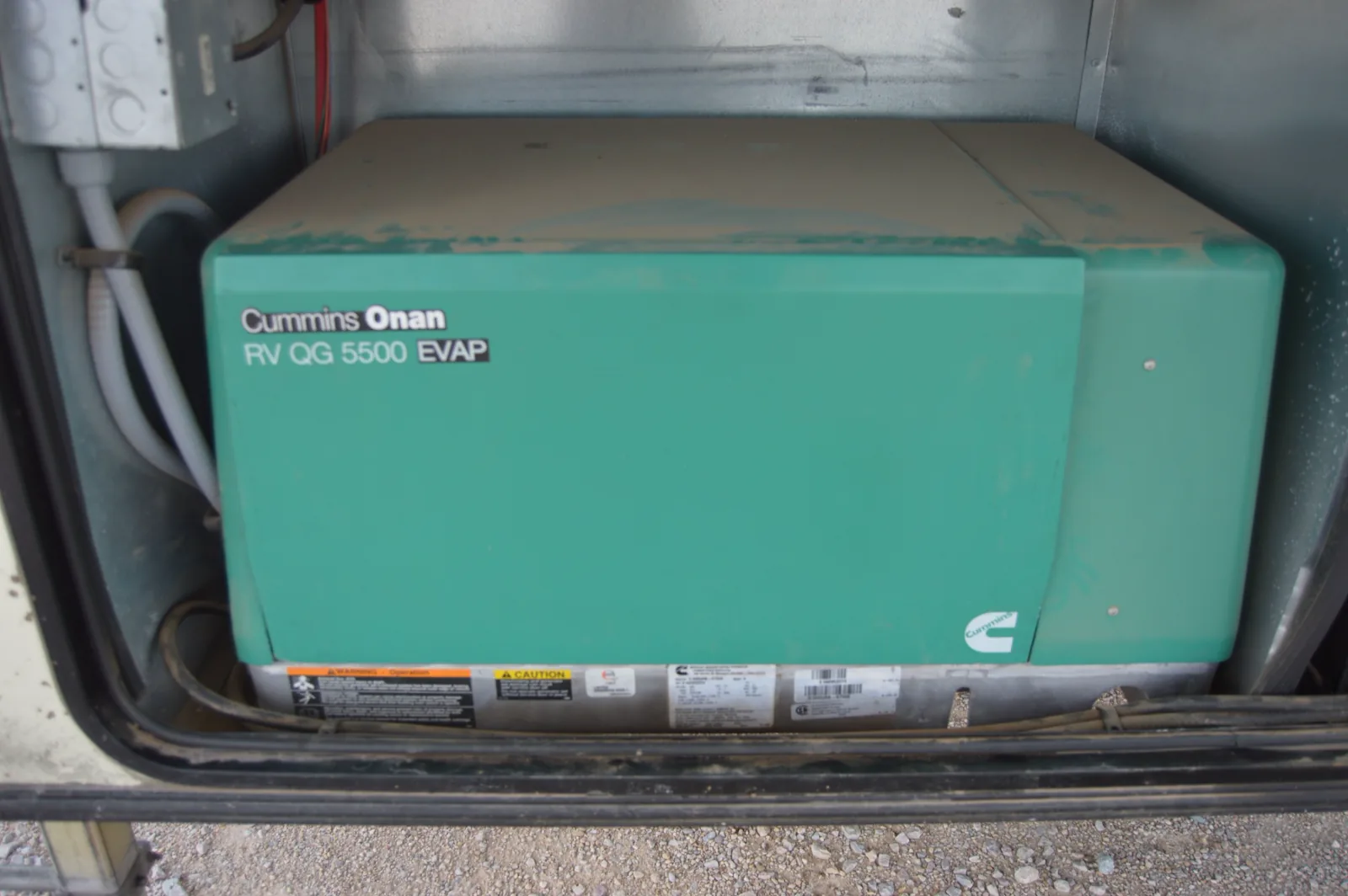

- Cummins Onan RV QG 5500 EVAP generator

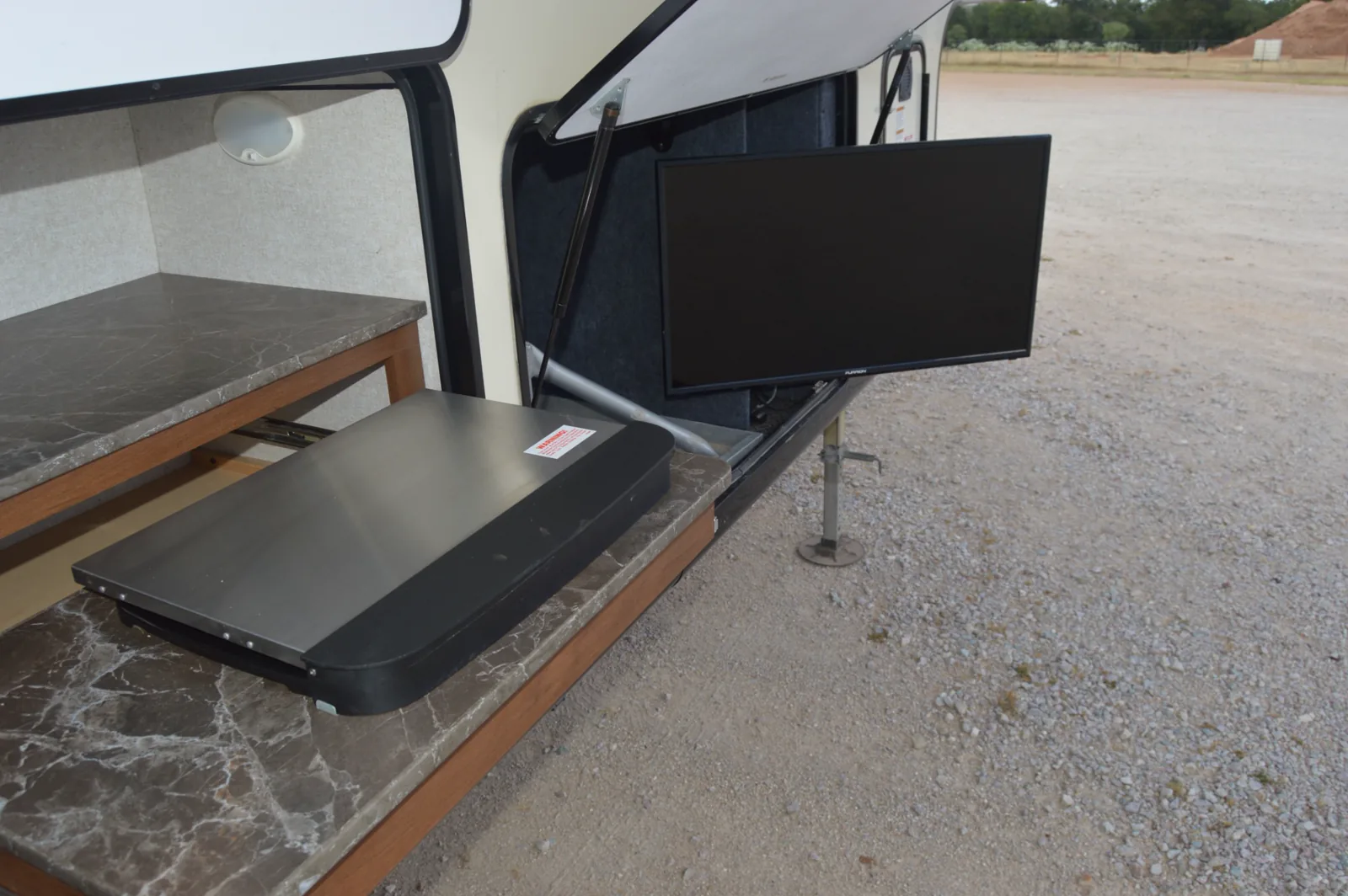

- Exterior television

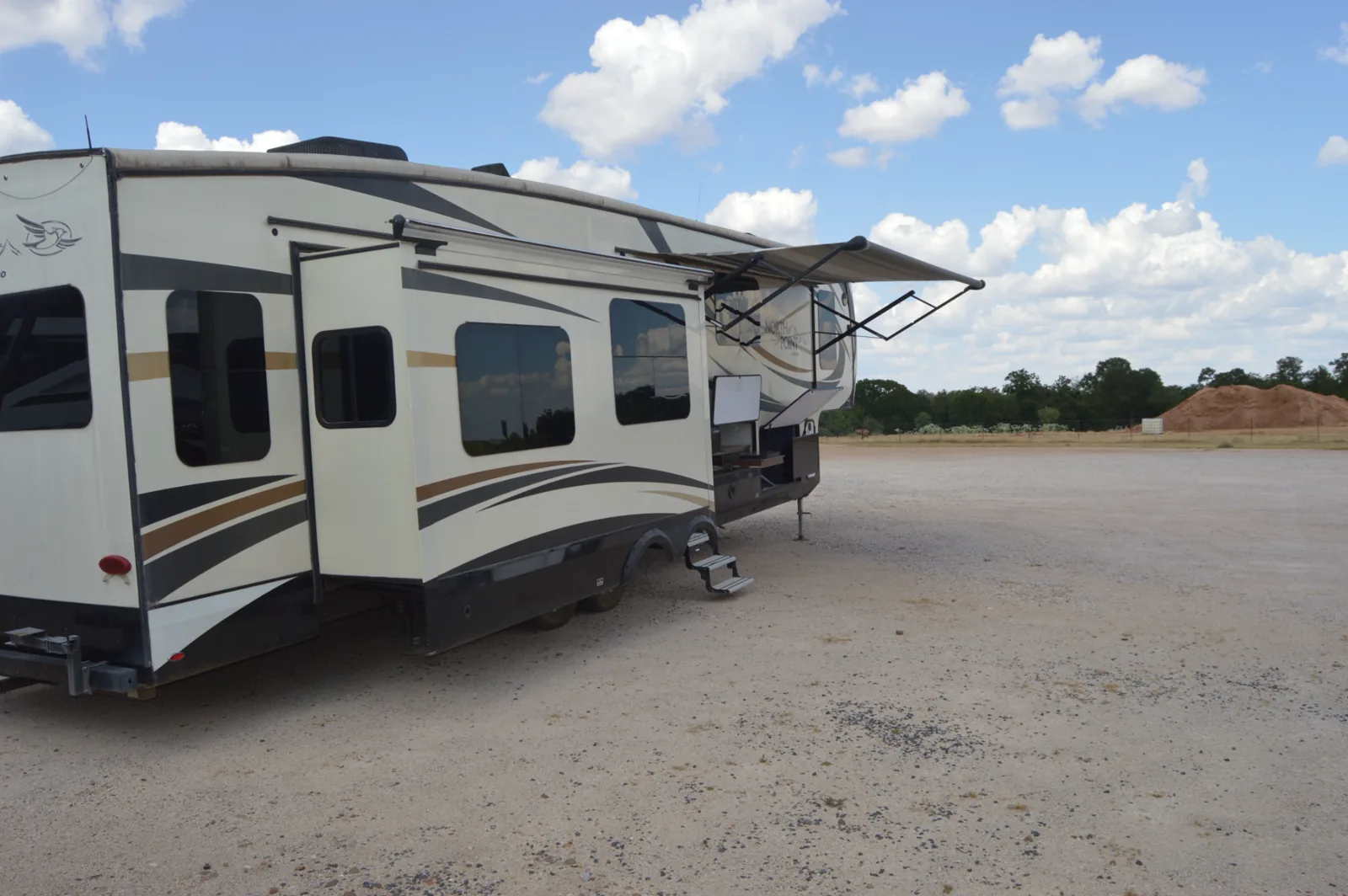

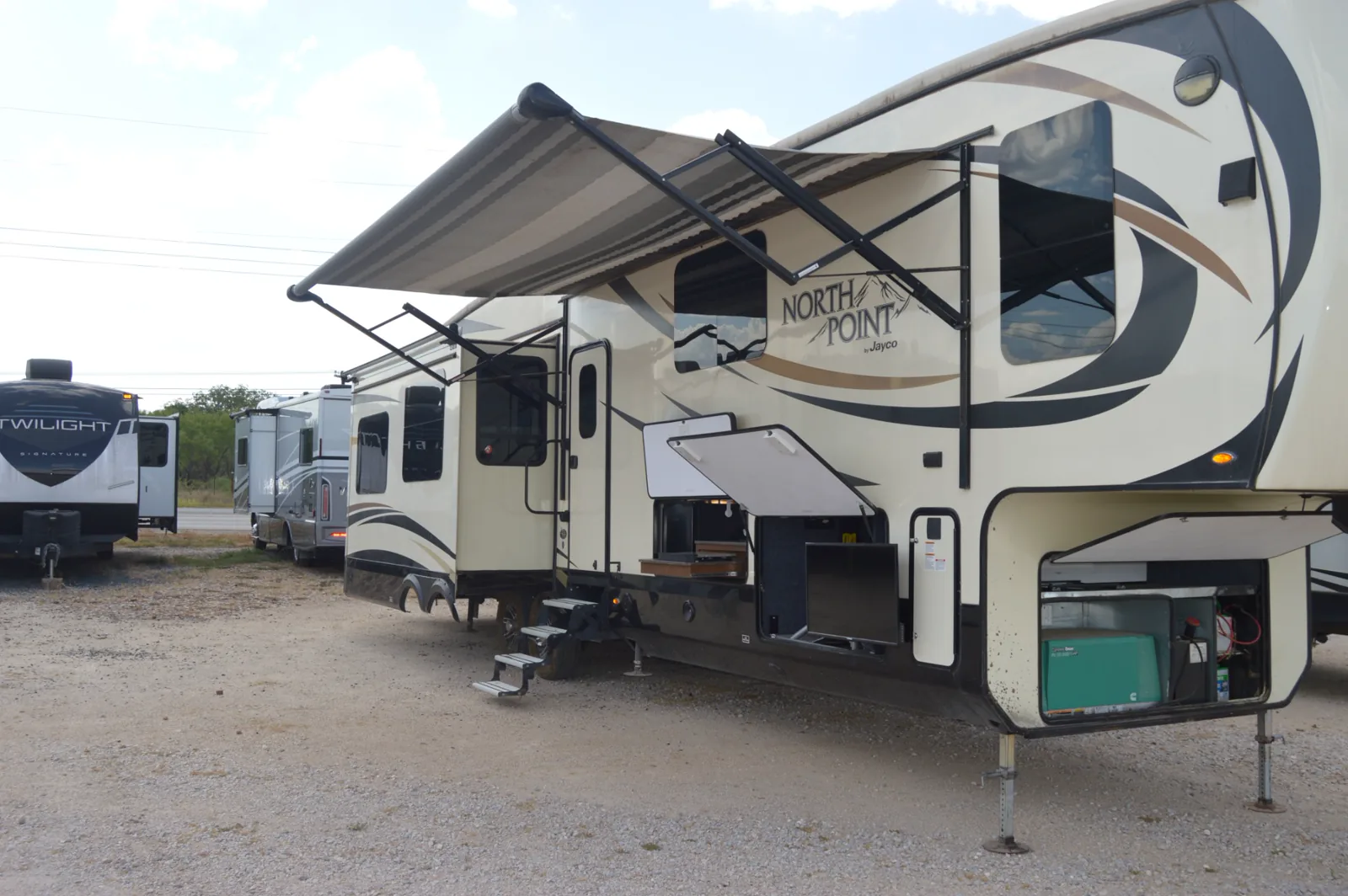

- Dual awnings
- Six-point electric auto-leveling
- 50-amp electrical service
- Exact-unit photo gallery, floorplan and video tour
Specifications
- Year
- 2017
- Make
- Jayco
- Model
- North Point 377RLBH
- Floorplan
- 377RLBH
- VIN
- 1UJCJ0BV2H1LL0117Exact-unit label
- Dimensions
- 42 ft 7 in long × 8 ft wide × 13 ft 2 in high with A/C
- Sleeps
- Up to 9
- Slides
- 4
- GVWR
- 16,500 lb (exact-unit label)Exact-unit label
- Factory-completed weight
- 14,497 lb (exact-unit label)Exact-unit label
- Maximum cargo
- 2,003 lb (exact-unit label)Exact-unit label
- Full fresh-water load
- 706 lb (exact-unit label)Exact-unit label
- Cargo remaining with fresh water full
- 1,297 lb (calculated from exact-unit labels)Exact-unit label
- Brochure UVW
- 13,305 lb (manufacturer model average)
- Brochure hitch weight
- 2,920 lb (manufacturer model average)
- Manufacture date
- May 2016Exact-unit label
- Layout
- Rear living room, island kitchen, separate mid-bunk room with overhead loft and private front bedroomManufacturer brochure
- Fresh / gray / black water
- 85 / 85 / 50 galManufacturer brochure; fresh capacity includes water heater
- Tires
- ST235/85R16E at 80 PSIExact-unit label
- Generator
- Cummins Onan RV QG 5500 EVAPExact-unit photos and video
- Furnace
- 40,000 BTUManufacturer brochure
- Electrical service
- 50 ampManufacturer brochure
Exact-unit label values take precedence over brochure averages. Published specifications describe the model and may vary with factory options.

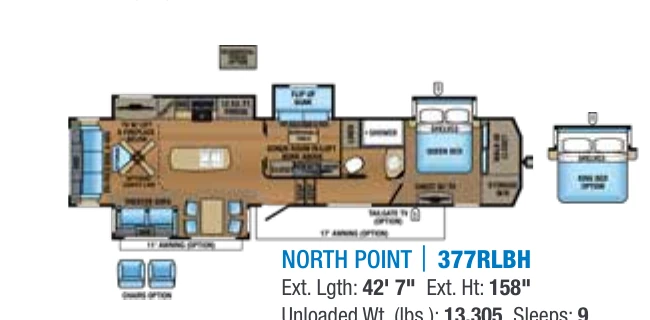

Floorplan
Floorplan shown as a model-reference layout, not an exact blueprint or scale drawing. Dimensions, furniture, finishes and installed options may vary on this exact unit.
Listing sources
- Exact-unit VIN, certification, cargo, tire and equipment labels in the supplied photos
- Uploaded Jayco North Point tour visually matched to VIN 1UJCJ0BV2H1LL0117
- 2017 Jayco North Point manufacturer brochure
